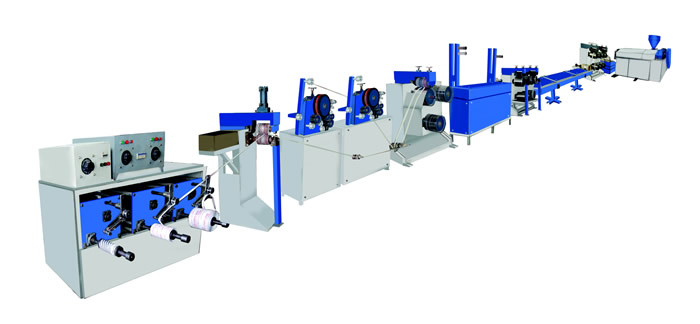

PP Box Strapping Plant

PRODUCT APPLICATIONS OF PP BOX STRAPPINGS

  • AIR PORTS.
  • AGRO/FOOD PRODUCT INDUSTRY.
  • AUTO,ENGG & STEEL INDUSTRY.
  • BANKS/SECURITY PRESS.
  • ELECTRONIC/ELECTRICAL INDUSTRY
  • GLASS & CREMIC INDUSTRY.
  • HOME APPLIANCES INDUSTRY.
  • LEATHER & SHOES INDUSTRY.
  • NEWSPAPER/PUBLISHERS.
  • PAPER&PAPER PRODUCTS INDUSTRY.
  • PLASTIC PROCESSING INDUSTRY.
  • SPORTS GOODS INDUSTRY.
  • TEXTILE INDUSTRY
  • TYRES/RUBBER PROCESSING INDUSTRY
  • WIRE/CABLE INDUSTRY.

SALIENT FEATURES:

  • Rugged HEAVY DUTY MODELS.
  • Models for Manual, Semi Auto Heat sealable and Fullyauto Heat seable Straps.
  • Strap Sizes From 6 mm to 19 mm.
  • Single,double, four straps dies available..
  • COLD START PREVENTOR FOR EXTRUDER.
  • Helical Gear Box with Inbuilt Thrust Bearing
  • Hydraulic operated knurling(embossing) system.
  • PLASMA NITRIDED SCREW & BARRELS.
  • Grooved Feed Barrels and Screws.
  • Higher out put. (Minimum 20 kgs/hr to 100 kgs/hr)
  • AC frequency drive for Extruder,Goddets , embossing unit.
  • Fully synchronized Plant with master control.
  • Individual printing station for double straps.

OPTIONAL

HIGH SPEED MIXTURE .
UNIVERSAL WINDER FOR DIFFERENT CORE LENGTHS AND DIAMETER

 SR NO.

 PLANT MODEL

 SCREW SIZE (MM)

SCREW L/D RATIO

FEED SECTION
TYPE

STRAP SIZE
(MM)

MAX PRODUCTION CAPACITY
(KGS PER HOUR)

TOTAL CONNECTED LOAD  (KW)

MAIN DRIVE
(HP)

POLYMER
TO BE PROCESSED

DIMENSION OF PLANT IN FEET

L

W

H


MANUAL STRAPPING PLANT

1

 MAF/BS/50

50

26:1

SMOOTH FEED

 9, 12,16 – SINGLE LINE

30

38

10

PP/HDPE

65

15

12

2

 MAF/BS/65

65

26:1

SMOOTH FEED

 9,12,16, 19

50

53

15

PP/HDPE

70

15

12

3

 MAF/BS/90

90

26:1

SMOOTH FEED

 9,12,16 – FOUR LINES
19 – TWO LINES

110

108

50

PP/HDPE

75

15

12


 SEMI HEAT SEALABLE STRAPPING PLANT

1

 MAF/BS/50

50

28:1

SMOOTH FEED

 9,12,16 – SINGLE LINE

35

57

10

PP/HDPE

80

15

12

2

 MAF/BS/65

65

28:1

SMOOTH FEED

 9,12 – TWO LINES
16, 19 – SINGEL LINE

55

74.2

20

PP/HDPE

90

15

12

3

 MAF/BS/75

75

28:1

SMOOTH FEED

 9,12, 16 – TWO LINES
19 – ONE LINE

90

116.25

30

PP/HDPE

100

15

12

 FOR FULLY AUTO STRAPPING PLANT

1

 MAF/BS/50

50

30:1

SMOOTH FEED

 9,12,16 – SINGLE LINE

35

51

10

PP

85

15

15

2

 MAF/BS/65

65

30:1

SMOOTH FEED

 9,12 – TWO LINE
16 – SINGLE LINE

60

82

20

PP

100

15

15

3

 MAF/BS/75

75

30:1

SMOOTH FEED

 9,12,16 – TWO LINE
19 – SINGLE LINE

75

131.25

25

PP

100

15

15
